Crane Truck Outrigger Pads Crane Front Stabilizer Leg Pads
-
◆ Product name：
Crane Truck Outrigger Pads Crane Front Stabilizer Leg Pads
-
◆ Sort：
UHMWPE|HDPE crane outrigger pads jack blocks
-
◆ Num：
SN1644543645

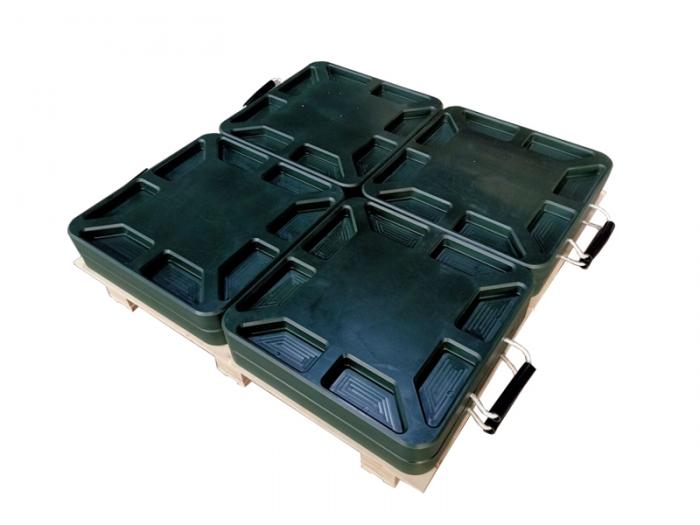

The outrigger pad of the crane is composed of two parts: the plate body and the hand rope. The plate body is made of UHMWPE composite material through a special process of high temperature and high pressure. The portable rope is made of nylon material. The end of the movable rope board is embedded in the board body for easy carrying and arrangement.
Thinckness
Size
Load Capacity(TONS)
Weight
MM
MM
45°
Vertical
KGS
25MM
500*500
30
55
6.25
600*600
35
60
9
800*800
40
81
16
1000*1000
43
93
25
1200*1200
50
130
36
Dia.800
38
78
12.5
Dia.1000
41
91
20
Dia.1200
48
110
28
40mm
500*500
31
56
10
600*600
36
61
14.4
800*800
42
82
25.6
1000*1000
44
94
40
1200*1200
51
131
57.6
Dia.800
40
80
20
Dia.1000
42
92
32
Dia.1200
48
130
45
50mm
500*500
31
58
12.5
600*600
40
62
18
800*800
43
85
32
1000*1000
45
98
50
1200*1200
55
140
72
Dia.800
41
83
25
Dia.1000
43
95
40
Dia.1200
52
137
56
60mm
800*800
43
86
38.4
1000*1000
45
99
60
1000*1000
53
133
86.4
Dia.800
41
84
30
Dia.1000
42
96
48
